Running Gait Cycle

Running Gait Cycle

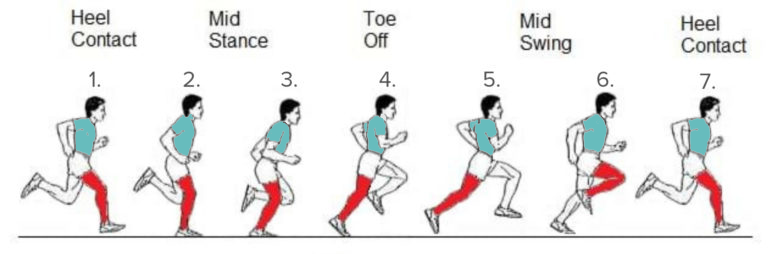

Here are the different phases of the gait cycle and the mechanics of the body in each of these phases:

Heel contact to mid stance (1-2 in image)

  • The ankle starts to flex and pronates (In positive way) to absorb shock (This is the most important phase for shock absorption)
  • Tibialis Anterior (TA) contracts to bring the shin forwards over the foot, while the calf eccentrically controls the shin
  • The adductors (groin), quads and hamstrings are activated eccentrically to stabilise the movement

Mid stance to heel off (2-3 in image)

  • The body’s centre of mass moves forwards over the foot
  • The ankle reaches maximum pronation
  • Eccentric contraction of the hamstrings and quads to stabilise the knee

Heel off to toe off (3-4 in image)

  • The ankle goes into supination (Opposite of pronation) and windlass mechanism is activated to create a rigid foot to push-off the ground (Toe-off)
  • The calf contracts to help with push-off and running economy. On top of that, the hamstrings, quads, glutes and TA transition from a stabilising function to a concentric function to help with push-off.

Initial Swing (5 in image)

  • The quads and hip flexors contract concentrically to swing the leg forwards
  • The glutes work to stabilise the pelvis
  • TA helps to keep the foot up, and prevents catching on the ground

Terminal Swing (6 in image)

  • Almost all the muscles of the lower limb activate in this phase to straighten the hip, knee and ankle for the next initial contact. The adductors and hamstring work to stabilise and decelerate the forward moving leg.
Heel contact  (7  in image)
  • The ankle starts to flex and pronates (In positive way) to absorb shock (This is the most important phase for shock absorption)


Gait cycle: The period from initial contact of one foot to the next initial contact of the same foot
Heel contact/foot strike- The moment each foot strikes the ground with each step
Midstance- The moment after Initial Contact when the whole foot is in contact with the group
Heel off- After Flat foot when the heel leaves the ground
Toe off- After heel-off when the toes leave the ground so that the leg can swing into the next step
Stance phase- The phase when the leg is in contact with the ground
Swing phase- The phase when the leg is in the air. Split into Initial and Terminal phases.
